FROM PRODUCT INENT TO REPEATABLE PARTS
Injection Molding
Injection molding is where design decisions become permanent. Our molding process is tightly integrated with industrial design and manufacturing planning, ensuring every part is engineered for tooling feasibility, dimensional stability, and long-term production reliability—before steel is cut.
Service Stages

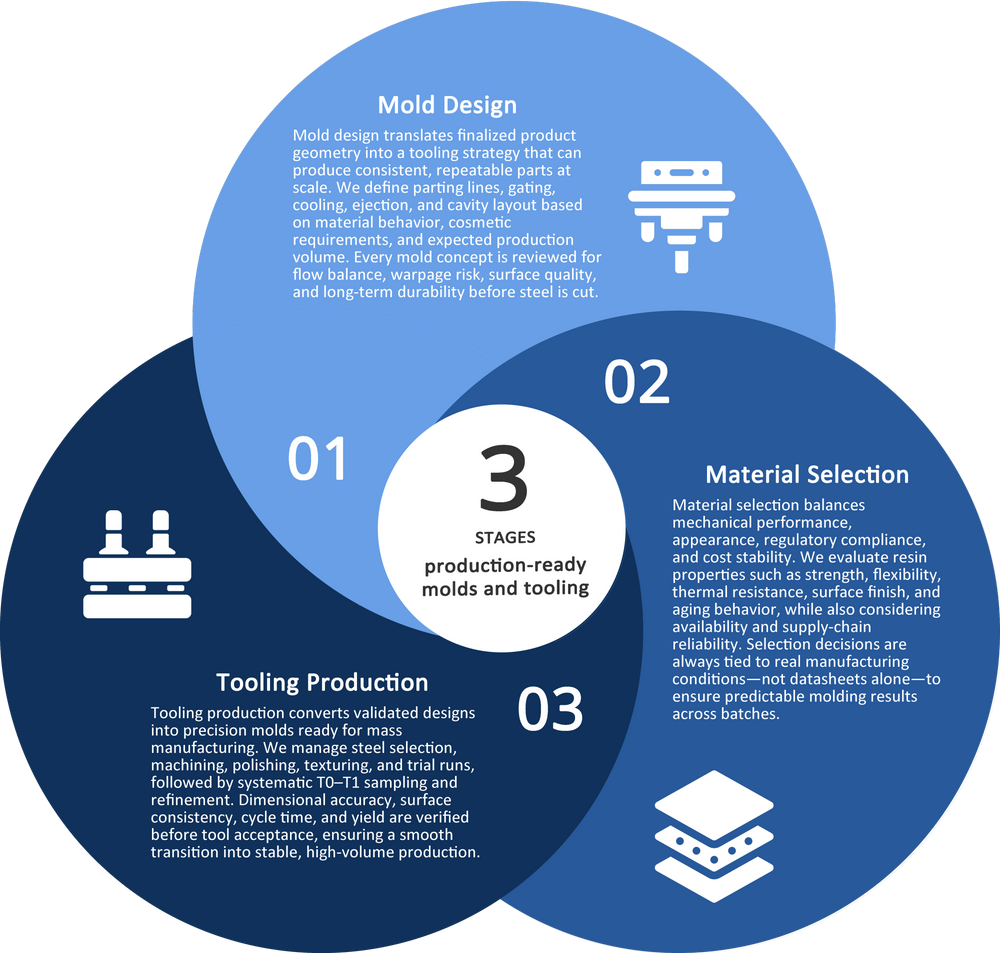

DESIGNING THE TOOL FOUNDATION
Mold Design Engineering
At AJE, mold design is treated as a production system, not just a tool. We engineer mold structures, gating, cooling, and ejection strategies based on part geometry, material behavior, target cycle time, and long-term yield. Our mold designs are developed in parallel with DFM decisions to minimize rework, ensure stable filling, and support predictable mass production from the first trial.
What We Support
Mold type and cavity strategy
Insert and overmolding evaluation
Parting line and ejection planning
Tolerance definition for molding
Gate, runner, and vent layout
Mold flow and filling logic
Draft angle and wall analysis
Tool life and volume alignment
Rib, boss, and reinforcement design
Pre-steel design freeze review
What We Consider
Mold design decisions account for:
- material flow behavior
- shrinkage
- surface finish requirements
- tolerance sensitivity
- long-term wear
We also evaluate:
- cavity count
- tooling complexity
- maintenance accessibility
- future revision flexibility
to avoid over-engineering early tools.
What We Need
Part & Design Inputs
- Finalized or near-final 3D part files
- Appearance-critical surfaces and cosmetic priorities
Production Targets
- Expected annual volume and lifecycle
- Cycle time and cost expectations
Quality Requirements
- Dimensional tolerances
- Cosmetic acceptance standards
Tooling Strategy Direction
- Prototype vs production tooling intent
- Expandability for future SKUs
Typical Timeline & Criteria
Typical duration:
1–3 weeks
Considered complete when:
- Mold structure, parting, and gating are approved
- Risks are documented and mitigated
- Tool design is locked for manufacturing
ENGINEERING FOR STABLE PRODUCTION
Material Selection & Process Definition
Material selection at AJE balances performance, appearance, tooling life, and supply stability. We evaluate resin flow, shrinkage, fiber orientation, thermal behavior, and color consistency, while defining molding parameters that align with cavity design and cooling strategy. This stage ensures the selected material performs consistently at scale—without introducing hidden cost, cosmetic risk, or process instability.
What We Support
Plastic resin selection by application
Color, texture, and consistency control
Surface finish and cosmetic suitability
Material availability and sourcing risk
Mold flow and filling verification
Mold modification and tuning support
Compatibility with inserts and overmolding
Material validation before tooling
Flame-retardant and compliance needs
Aging and environmental resistance evaluation
What We Consider
Material decisions factor in:
- mechanical strength
- thermal behavior
- chemical resistance
- aging performance
- color stability
- sourcing consistency
We also assess how materials impact:
- mold wear
- cycle time
- scrap rate
- long-term cost stability
What We Need
To move efficiently through structural definition, we align with clients on the following:
Functional Requirements
- Mechanical load, heat, and environment exposure
- Safety or regulatory considerations
Appearance Expectations
- Color, gloss, texture, and aging tolerance
- Surface finish consistency
Supply & Cost Constraints
- Target material cost
- Preferred suppliers or approved resin lists
Manufacturing Context
- Expected production volume
- Mold life expectations
Typical Timeline & Criteria
Typical duration:
3–7 days
Considered complete when:
- Material is validated for performance and molding
- Color and finish are production-feasible
- Material is approved for tooling
FROM TOOLING TO OUTPUT
Tooling Production & Validation
AJE manages tooling production through qualified mold makers with strict control over steel selection, machining accuracy, and assembly quality. We oversee T0–T2 trials, part measurement, surface evaluation, and process tuning until the mold reaches stable, repeatable output. Tooling is only released for mass production once dimensional, cosmetic, and cycle-time targets are consistently met.
What We Support
Steel selection based on mold life
Surface texture and finish validation
Single and multi-cavity mold builds
Process window establishment
CNC, EDM, and polishing control
Yield and cycle time optimization
T0 / T1 / T2 trial coordination
Mold acceptance and sign-off
Dimensional inspection and correction
Maintenance and lifecycle documentation
What We Consider
Tooling production accounts for:
- steel grade selection
- mold life targets
- cooling efficiency
- tolerance control
- ease of maintenance
We also plan for:
- future revisions
- cavity expansion
- long-term production stability
What We Need
Final Tooling Approval
- Locked mold design and material selection
- Confirmed cavity count
Production Planning Inputs
- Target launch date
- Ramp-up volume expectations
Quality & Validation Scope
- Trial criteria and sample quantity
- Measurement and inspection standards
Change Control Alignment
- Engineering change process
- Revision freeze milestones
Typical Timeline & Criteria
Typical duration:
4–8 weeks (depending on complexity)
Considered complete when:
- T1/T2 samples meet functional and cosmetic requirements
- Tool runs stably at target cycle time
- Tool is approved for pilot or mass production
- Rushed timelines without production clarity will increase long-term cost, not shorten launch.
